Â
| HS Code: | 83111000 |
| Trademark: | Wannuo |
| Model NO.: | AWS E6013 |
| Standard: | AWS E6013 |
| Productivity: | 3000Â ton/month |
| Unit Price/Payment: | FOB |
| Origin: | Shijiazhuang Hebei China |
| Packing: | (Packing: 5kg/box+plastic bag, 4boxes/carton=20kg) |
| Min. Order: | 20 TON |
| Transportation: | BY SEA |
| Assistant Appliance: | Arc-Protection Helmet |
| Type: | Cold Welding |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
AWS E6013 J421 Low Carbon Steel Rutile Type Welding Electrode
GB/T 5117 E4313
 AWS A5.1 E6013
 ISO 2560-A-E35 0 RA 12
Â
It is suitable for welding low carbon steel structre, especially suitable for the welding of thin plate and short weld of discontinuous and covering welding which requires somooth surface .
Features:
J421 AWS E6013 is a coated rutile type acid electrode. Both AC and DC can be used and can be all-position welding. It can reach excellent welding performance , stable arc, little spatter, easy slag removal and good welding appearance.
Welding Positions:Â PA , PB , PC, PD, PE, PF .
Attention:
In general, don't need to bake before welding electrode. When the electrode be affected with damp, it should be subject to us 150-170ºC for 0.5-1 hour.
Deposit Composition (Quality Score) :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â %
| Items | C | Mn | Si | S | P | Ni | Cr | Mo | V |
| Requirements |
≤ 0.10 |
0.32-0.55 |
≤ 0.30 |
≤ 0.030 |
≤ 0.035 |
≤ 0.30 |
≤ 0.20 |
≤ 0.30 |
≤ 0.08 |
| Typical Results | 0.08 | 0.37 | 0.18 | 0.020 | 0.025 | 0.030 | 0.035 | 0.005 | 0.004 |
Mechanical Properties:
| Items |
Tensile Strength Rm/MPa |
Yield Strength Rel/Rp0.2 Â MPa |
Elongation A/% |
Charpy V-Notch KV2 (J) 0 ºC |
| Requirements | 440-560 | ≥355 | ≥22 | ≥47 |
| Typical Results | 500 | 430 | 27 | 80 |
X-ray detection :
Typical Operating Procedures: ( AC, DC)
|
Diameter In ( mm) |
2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 5.8 |
|
Current In ( A ) |
40-70 | 50-90 | 80-130 | 150-200 | 180-240 | 220-280 |
Welding Electrodes Packing:
| Size(mm) | weight(kg) | Inner Packing(mm) | Outer Packing(mm) |
| 2.5×300 | 2.5kg/box, 8boxes/carton=20kg |
310*80*60 | 320*170*120 |
| 2.5×350 | 5kg/box 4boxes/carton=20kg |
360*80*60 | 360*170*120 |
| 3.2×350 | 5kg/box 4boxes/carton=20kg |
360*80*60 | 360*170*120 |
| 4.0×400 | 5kg/box 4boxes/carton=20kg |
410*80*60 | 420*170*120 |
| 5.0×400 | 5kg/box 4boxes/carton=20kg |
410*80*60 | 420*170*120 |
Each OEM package can be done as clients required.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q. Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Â
Application Function: measurement for oxygen, crystallization for measuring carbon content, measuring low carbon content under the carbon oxygen balance principle,calculation and measurement of acid soluble aluminum
Molten Iron Sampler is made of fiber which is high quality and high temperature resistance. It is dedicated to collect metal liquid from furnace or ladle for chemical analysis. The sampler could be resistant to extreme cold and hot and there will be no cracks, which means that it can be used repeatedly

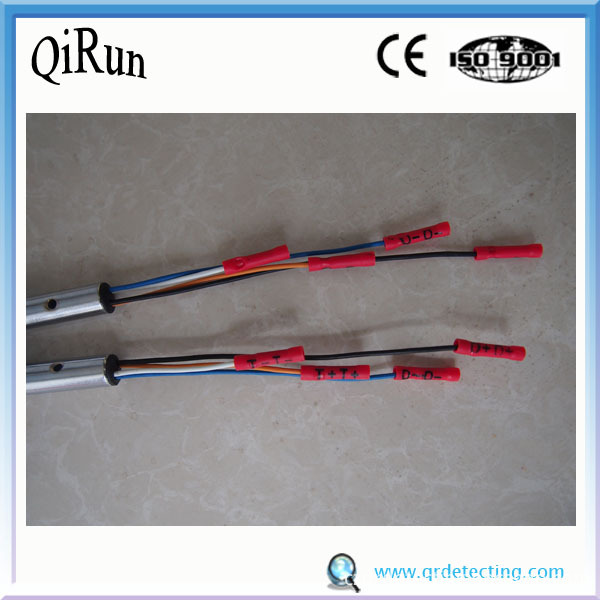

Oxygen Connector Block,Oxygen Determination Connector Block,Oxygen Thermocouple Connector,Oxygen Measuring Plug-In
